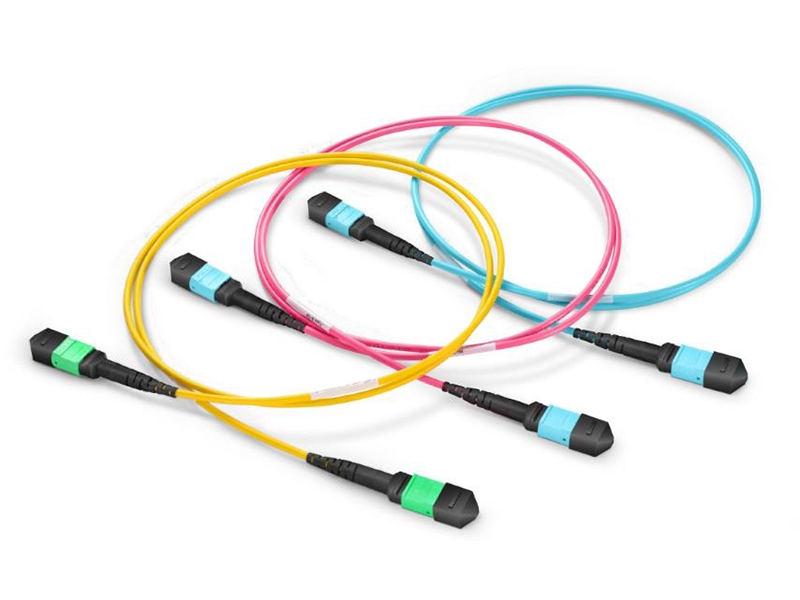

MTP/MPO Trunk Cable

Features:
• Low insertion loss and high return loss
• Compatible with MTP®/MPO modules and adapter panels
• Optional pulling eyes protect connectors during cable installation
• Custom fiber counts, cable lengths, and connector configurations available
• PC, UPC, and APC endface options
• Optional pulling eyes protect connectors during cable installation
• RoHS compliant

Download

Description:
Kington MTP®/MPO Fiber Optic Cable Assemblies are the ultimate high-density, modular cabling solution engineered for modern data centers, telecommunications rooms, and enterprise enterprise backbone networks. Designed to support high-speed migration to 40G, 100G, 400G, and 800G architectures, these pre-terminated assemblies consolidate up to 32 fibers into a single, compact connector. They replace bulky traditional cabling, minimize deployment time, and optimize valuable airflow and rack space

Specifications：

Connector A	MTP/APC/Male	Connector B	MTP/APC/Female
Fiber Mode	SM/MM	Wavelength	1310/1550nm
Fiber Type 1	Corning SMF-28 Ultra®	Fiber Type 2	G.657 A1 (Compatible with G.652D) /OM3,OM4
Fiber Count	8F/12F/24F	Min. Bend Radius	10mm
Polarity	Type A /B	Cable Jacket	Riser (OFNR) / Plenum (OFNP)
Cable OD	3.0mm	Cable Structure	Mini Cable
Return Loss	≥60dB	Insertion Loss	Max. 0.35dB
Attenuation@1310nm	≤0.4dB/km	Attenuation@1550nm	≤0.3dB/km
Storage Temperature	-40℃ ~ + 75℃	Operating Temperature	-10℃ ~ + 60℃
Installation Tensile Strength	66N	Cable Tensile Strength(Long/Short)	80/150N
Connctor Durability	50 times
