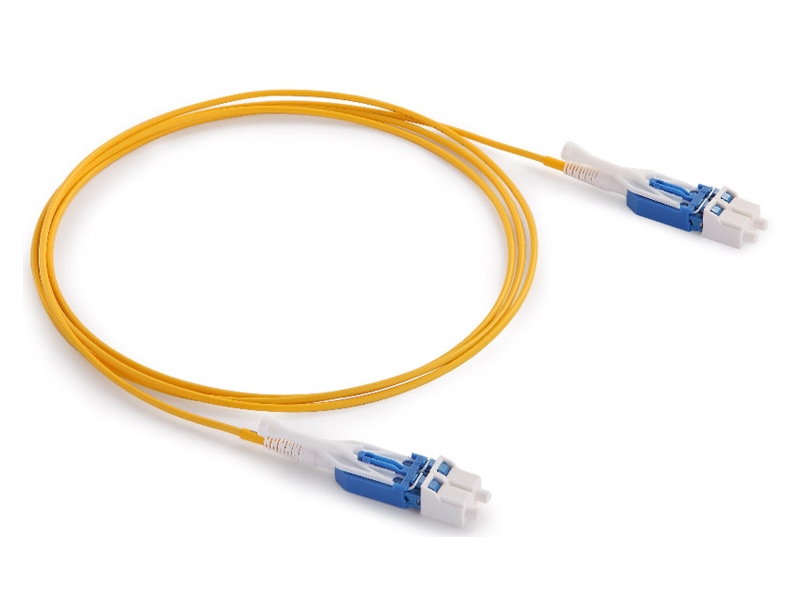

High-Density LC Uniboot cable

Features:
• Tool-Free Polarity Reversal
• 50% Space Saving
• Optimal Airflow & Cooling
• Bend-Insensitive Fiber (BIF)
• Color-Coded Identification

Download

Description:
Maximize your data center efficiency with our premium LC Uniboot OS2 Singlemode Duplex Fiber Patch Cable. Specifically engineered for high-density environments, this innovative cable integrates two individual fibers into a single jacketed round cable (2.0mm/3.0mm), cutting traditional cable volume by up to 50%. This compact design drastically improves rack airflow, coordinates neater cable management, and optimizes cooling pathways.
Equipped with an advanced Tool-less Switchable Polarity housing, it allows technicians to effortlessly reverse the fiber polarity from A-B to A-A in seconds without exposing the fragile internal glass or requiring specialized tools. Featuring standard blue duplex LC/UPC connectors, it delivers ultra-low insertion loss and exceptional return loss for high-speed telecom infrastructures

Specifications：

Item	Specification
Fiber Count	2
Fiber Mode	SM: OS2 \| MM:OM3/OM4
Connector type	LC/DX. LC Uniboot, Uniboot Push Pull
Insertion loss	SM: ≤0.2dB(UPC),≤0.3dB(APC), MM≤0.2dB
Return Loss	SM:≥50dB(UPC),≥65dB(APC)
Wavelength	SM:1310//1550nm \| MM:850/1300nm
Operation Temperature	-40℃ to + 75℃
Storage Temp	-40℃ to + 85℃
Standard Compliant	ROHS, IEC,Telcordia GR-326-CORE
