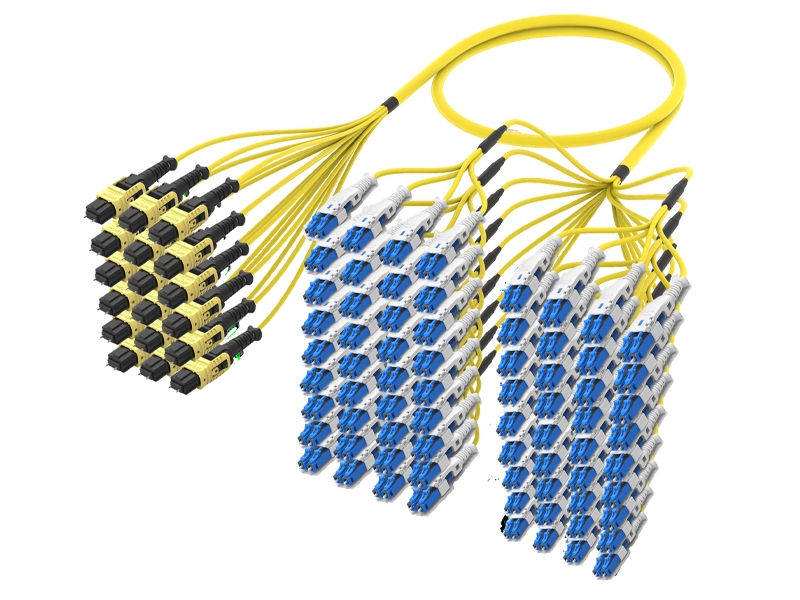

144F MPO-LC Cable

Features:
• Polarity options available for various applications
• MPO interface available with male or female connectors
• Base-8, Base-12, Base-16 and Base-24 connectors available
• MPO components feature superior optical and mechanical properties
• Optional pulling eye for easier installation
• Pre-defined breakout lengths reduce design complexity
• Reduced diameter MicroCore cable with 2.0 mm subunits (up to 144 fibers)
• MPO/LC EZ-Way®is a registered trademark SENKO Advanced ComponentsLtd., JAPAN

Download

Description:
144 Fiber MPO /LC EZ-WAY Assemblies are high-density, easy-to-install fiber optic cables for data centers, using MPO/LC connectors with a push-pull design (EZ-WAY) for fast patching, supporting up to 144 fibers in a single connector for maximum space saving, often in 8,12 ,24-fiber configurations, providing reliable, high-performance connectivity for modern, scalable network infrastructure with low insertion loss.

General Specification：

Construction	Description
Fiber Count	8-144 Fibers
Fiber Mode	Single mode: G652/G657
	Multimode: OM1 OM2 OM3; OM4
Fiber Brand	SMF-28® Ultra optical fiber
	Corning ClearCurve® Multimode fiber
Cable Jacket Material	Low Smoke Zero Halogen (LSZH)
	PVC
Cable Jacket Ratings	Riser (OFNR)
	Plenum (OFNP)
Cable Jacket Color	OS2/G657: Yellow
	OM1/OM2: Orange
	OM3: Aqua
	OM4: Aqua/Magenta
	Customized
Polarity	Customized
MTP/MPO	Ferrule	8F,12F, 16F, 24F, 32F
	Connector Type	MTP, MPO
	Connector Brand	US Conec MTP, Senko MPO, China MPO
	Connector Color	Ferrule	SM(APC)	SM(PC)	OM3	OM4	customized
		Low loss	Yellow	Yellow	Aqua	Magenta
		Standard	Green	Blue	Aqua	Magenta
	Boot Color	Green/Black/ Customized
Single-fiber connector	LC, SC, FC, etc.
Pulling eye	Customized
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Technical Specification
MPO / MTP Termination
Optical Properties	Single mode				Multimode
Insertion Loss (dB)	Low loss		Standard		Low loss		Standard
	<0.35 (Typical:<0.25)		≤0.75 (Typical:≤0.4)		<0.35 (Typical:<0.20)		≤0.5 (Typical:≤0.35)
Return Loss (dB)	PC≥50; APC≥60				PC≥20; APC≥40
Wavelength (nm)	1310/1550				850/1300
Durability	≤0.3 (dB) Typical Change, 50 matings
Single-fiber connector Termination
Optical Properties	Single mode				Multimode
Insertion Loss (dB)	UPC≤0.2; APC≤0.2				PC≤0.2
Return Loss (dB)	UPC≥50; APC≥60				PC≥20
Wavelength (nm)	1310/1550				850/1300
Durability	<0.3(dB) Typical Change, 500 matings
Note: IL&RL Test method: IEC 61300-3-4 insertion B.
