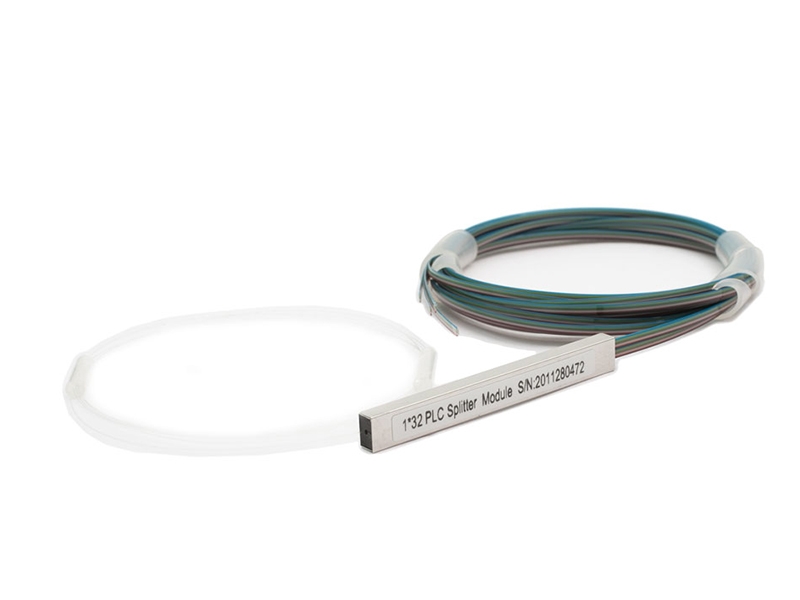

Description:
Fibre optic splitter is a network component that distributes incoming light (one or two input fibers) in equal parts towards multiple output fibers (2-64). Splitters are available with 250 µm bare fibers, 900µm buffered fibers and 2.0 mm cords. Input and output cords and fibers can have various lengths and can be terminated by optical connectors. KINGTON fibre optic splitters can be integrated inside several products and/or applications in combination with keen fibre or cable management systems.
All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network deployment.

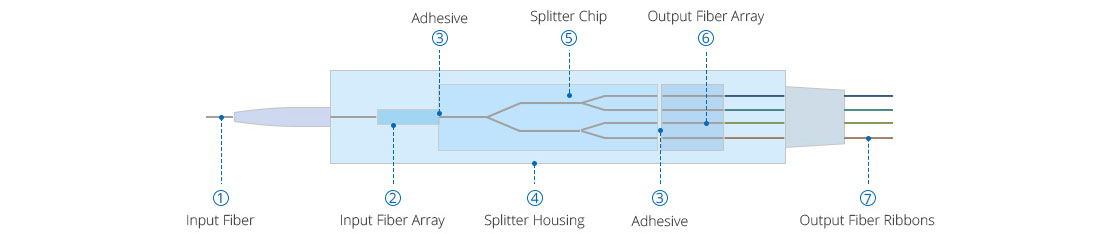

Among the many miniature parts which makes up a passive optical PLC splitter, there are three main components which are the fiber array for the input and output, and the chip. The design and assembly of these three component is the key to produce a high quality PLC splitter.

Specifications：

1×N PLC Splitter
Parameters	1x2 Port	1x4 Port	1x8 Port	1x16 Port	1x32 Port	1x64 Port
Operating Wavelength(nm)	1260～1650
Fiber Type	G652D/G657A1/G657A2
Insertion Loss(dB)	4.1	7.4	10.8	14.3	17.3	21
Uniformity(dB)	1	1.5	1.5	2	2	2.5
Return Loss(dB)	55	55	55	55	55	55
PDL(dB)	0.3	0.3	0.3	0.3	0.3	0.5
Directivity (dB)	55	55	55	55	55	55
Temperature Stability(-40～85 ℃)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-25～70
Storage Temperature (℃)	-25～70
Mini Module Dimension (LxWxH)	60x7x4	60x7x4	60x7x4	60x12x4	80x20x6	100x40x6
ABS Box Dimension (LxWxH)	100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	140x115x18
Bare Fiber Dimension (LxWxH)	40x4x4	40x4x4	40x4x4	50x7x4	50x7x4	60x12x4
Note: Add an additional 0.3dB loss per connector.

2×N PLC Splitter
Parameters	2x2 Port	2x4 Port	2x8 Port	2x16 Port	2x32 Port	2x64 Port
Operating Wavelength(nm)	1260～1650
Fiber Type	G652D/G657A1/G657A2
Insertion Loss(dB)	3.8	7.1	10.2	13.5	16.8	20.5
Uniformity(dB)	0.4	0.6	0.8	1.2	1.5	2
Return Loss(dB)	55	55	55	55	55	55
PDL(dB)	0.2	0.2	0.2	0.3	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Temperature Stability(-40～85 ℃)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-25～70
Storage Temperature (℃)	-25～70
Mini Module Dimension (LxWxH)	60x7x4	60x7x4	60x7x4	60x12x4	80x20x6	100x40x6
ABS Box Dimension (LxWxH)	100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	140x115x18
Bare Fiber Dimension (LxWxH)	40x4x4	40x4x4	40x4x4	50x7x4	50x7x4	60x12x4
Note: Add an additional 0.3dB loss per connector.
