Description:

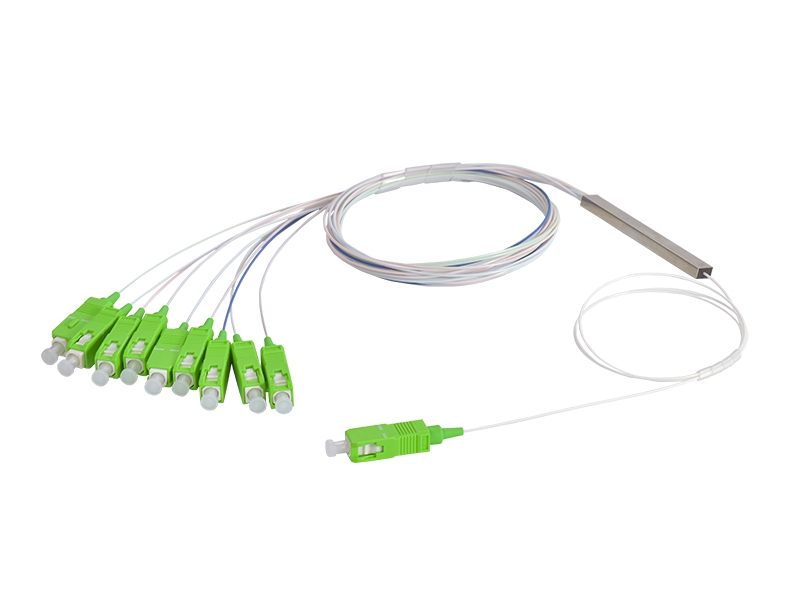

Fiber Optic Splitter is a network Component that distributes incoming light（ one input fiber) in unequalparts towards multiple output fibers with a wide range of working wavelength from 1260nm to 1620nm (1x5/1x9/1x17), Splitters are available with 250μm Bare Fibers, 900μm buffered fibers and 2.0mm cords.Inputand output cords and fibers can have various lenghts and can be terminated by optical connectors, KingtonFiber Optic Splitters can be integrated inside serveral products and or application in Combination with Fiber or cable managers systems
All Products meet Telcordia 1209 & 1221 reliablity requirments and are certified by TLC FOR Networkdeployment

Specifications：

Parameters	1X5(30/70)	1X9(30/70)	1X17(30/70)
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A or Customized
Insertion Loss (dB)	≤15.8/1.8	≤16.5/2.2	≤19.7/2.2
Uniformity(dB)	≤0.8	≤0.8	≤1.0
Return Loss(dB)	≥50	≥50	≥50
PDL (dB)	0.3	0.3	0.3
Directivity(dB)	≥55	≥55	≥55
Temperature Stability (-40— 85 C) (dB)-Max	0.5	0.5	0.5
Operation Temperature ( C )	-25～70
Mini Module Dimension(LXWXH)	60x7x4	60x7x4	60x12x4
Bare Fiber Dimension(LXWXH)	40x4x4	40x4x4	50x7x4
