Features:
• Cost effective solution for in house termination
• Low insertion loss and added loss.
• Height of attenuation.
• IP68 water, dust proof and corrosion resistant
• Mechanical performance: IEC 61754-4 standard.

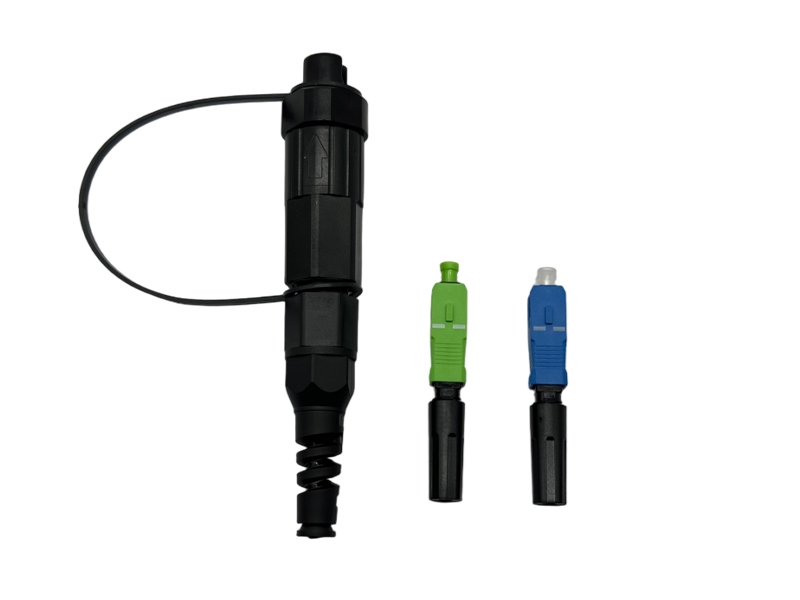

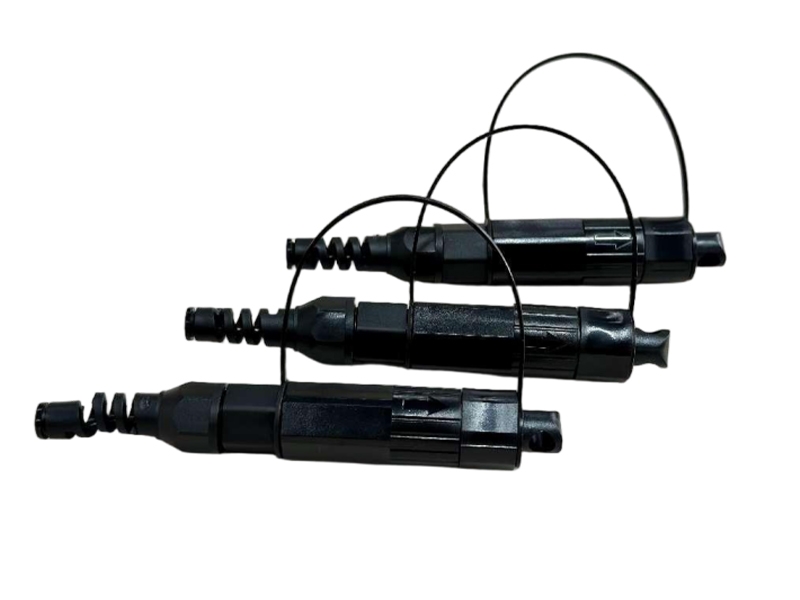

Pre-connectorized Mini SC Field Installable Connector is a new design outdoor waterproof fiber optical connector compatible with Mini SC connector /adapter . It’s mainly used for FTTH outdoor installation . It’s small and easy to be installed with IP68 grade . Mini SC fast connector is an excellent solutions with Device and do not need terminated the connector in laboratory . It can be field assembled very easy to save the project time.
Specification:
|
Item |
Specification |
|
Length |
119±1mm |
|
Cable Scope |
2*1.6mm/2*3.0mm /2.0*5.0mm flat drop cable, |
|
Fiber Diameter |
125um(G652D&G657A) |
|
Coating Diameter |
250um |
|
Mode |
Single mode or Multi mode |
|
Operation Time |
About 15s(Exclude fiber presetting) |
|
Working Wavelength |
1310 nm, 1490 nm, 1550 nm |
|
Insertion Loss |
AVG≤ 0.3dB, |
|
Return Loss |
≥ 50dB for UPC, ≥ 55dB for APC |
|
Success Rate |
>98% |
|
Reusable Times |
>5 times |
|
Tensile Strength |
>30 N |
|
Temperature |
-40~+85℃ |
