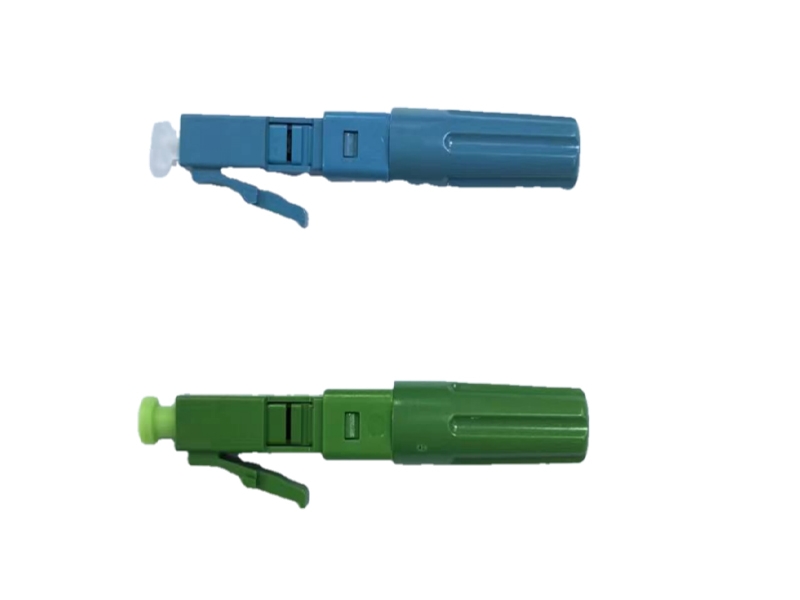

Features:
• Tight lock design (with teeth inside) hold the cable tightly
• Slide up and down to lock and unlock the fiber easily and conveniently
• Precision mechanical alignment & Ceramic groove for pre-buried ensures low loss and high performance, efficient to connection
When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing. It provides a perfect ferrule endface quality. This has great help to protect users’ equipment interface and reduce the connector loss.
Specification:
|
Item |
Specifications |
|
Length |
45mm |
|
Ferrules |
LC/UPC;LC/APC |
|
Inner Diameter of Ferrules |
125um |
|
Insertion Loss |
AVG≤0.3 dB;MAX≤0.5 dB |
|
Return Loss |
UPC≥45 dB;APC≥50 dB |
|
Working Temperature |
-20~+75℃ |
|
Storage Temperature |
-40~+85℃ |
|
Mating Times |
500 Times |
|
Cable Diameter |
Drop cable：2.0*1.6mm/2.0*3.0mm/2.0*5.0mm |
