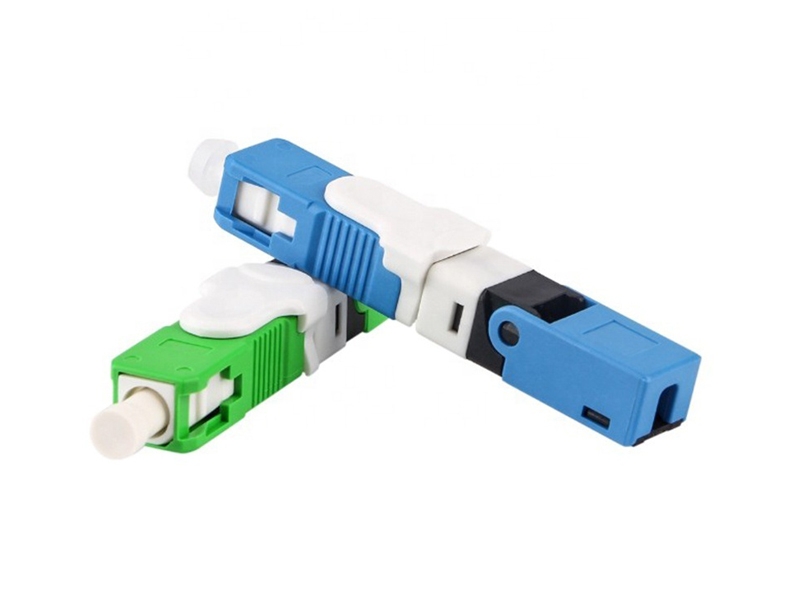

Filed Assembly Connector

Features:
• Tight lock design (with teeth inside) hold the cable tightly
• Slide up and down to lock and unlock the fiber easily and conveniently
• Precision mechanical alignment & Ceramic groove for pre-buried ensures low loss and high performance, efficient to connection

Description:
Pre-polished Ferrule Field Assembly Connector is a perfect solution for field working and FTTH connection. It is widely used for where need to quick connection, providing a quickly assembling and stable performance.
When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing. It provides a perfect ferrule endface quality. This has great help to protect users’ equipment interface and reduce the connector loss.

Specifications：

Item	Specification
Length	60mm
Ferrules	SC/UPC;SC/APC
Inner Diameter of Ferrules	125um
Insertion Loss	AVG≤0.3 dB;MAX≤0.5 dB
Return Loss	UPC≥50 dB;APC≥55 dB
Working Temperature	-20~+75℃
Storage Temperature	-40~+85℃
Mating Times	500 Times
Cable Diameter	Cable Diameter Drop cable:0.9mm(0.9mm with tail) /2.0/3.0/2.03.0mm/2.05.0mm
