Multi-Fiber Breakout Assemblies-KINGTON Optic Co.,Ltd

Description:

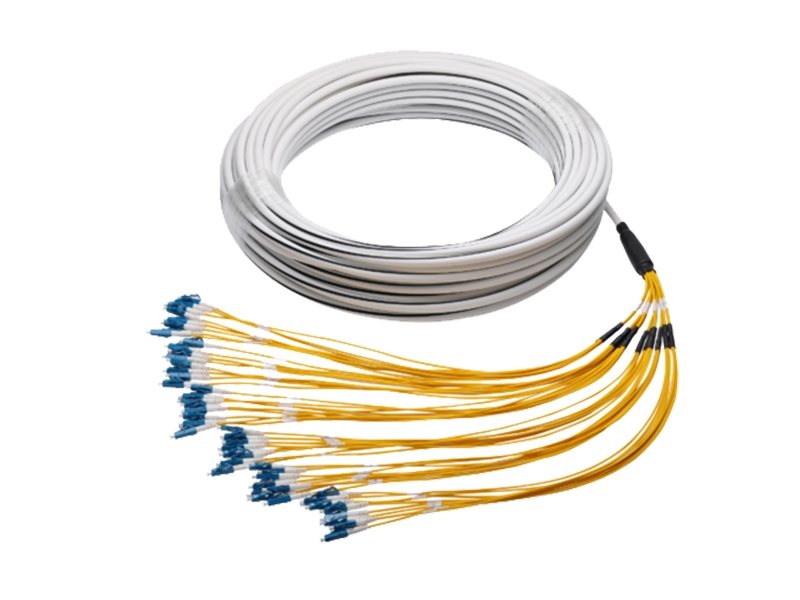

A breakout patch cord (also known as a fanout cable) features a specific multi-fiber optic design that transitions a high-density trunk connection into multiple individual optical connectors.It is a versatile solution designed to simplify fiber optic connectivity in various applications.
It is a low-cost cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. Designed with carrier-grade quality, this cable features superior assemblies that minimize light loss during bending for reliable transmission in tight spaces.

Specifications：

Optical Performance	Single Mode		Multi Mode
Insertion Loss	≤0.20dB		≤0.30dB
Return Loss	≥50dB(UPC)		≥30dB
	≥60dB(APC)
Repeatability	≤0.10dB
Durability	≤0.2dB typical change,1000 matings
Core/Cladding size	9/125μm		50/125μm	62.5/125μm
Jacket type	PVC or LSZH
Operating Temperature	- 20 ~ +75℃
Storage Temperature	- 40 ~ +85℃

Endface Geometry
Parameter	2.5μm ferrule		1.25μm ferrule
	UPC	APC	UPC	APC
Radius of Curvature	10～25mm	5～12mm	7～25mm	5～12mm
Apex Offset	0～50μm	0～50μm	0～50μm	0～50μm
Fiber Height	-100～50nm	-100～100nm	-100～50nm	-100～100nm
Angle	--	7.7-8.3degree	--	7.7-8.3degree
