Description:

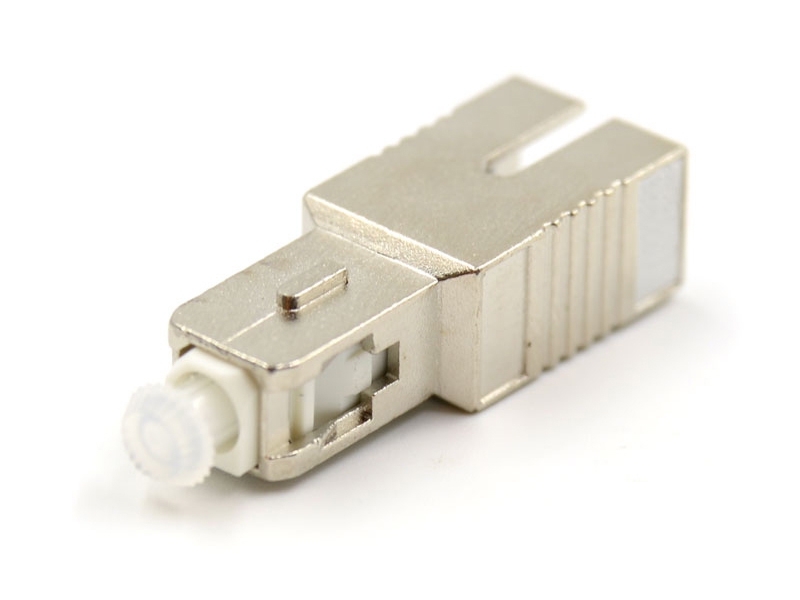

Attenuators are used in communication systems to reduce optical power launched onto the photo detector. These high performance devices are designed to give accurate attenuation over a wide range of wavelengths. The plug type configuration allows them to be used directly on the end of a patch cord, which in turn can insert directly into an adapter.
Available in FC, SC and LC connector styles with UPC or APC finish and ST and MU connector styles with UPC finish, attenuators providing ultra-low return loss and are available from 0 dB to 30 dB in 1 dB increments.

Fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is often a requirement in Dense Wave Division Multiplexing (DWDM) and Erbium Doped Fiber Amplifier (EDFA) applications where the receiver cannot accept the signal generated from a high-power light source.

Specifications:

Optical Performance	M-F Plug Type/ In line Type	F-F Adaptor Type
Operating Wavelength	SM 1260-1600nm MM 1260-1320nm
Testing Wavelength	SM: 1310nm / 1550nm	1310nm
	MM: 850nm / 1300nm
Attenuation Accuracy	1-9 dB 0.5dB
	10-30dB 10%of Attenuation Value
Return Loss	≥50 dB (UPC)	N/A
	≥ 60 dB (APC)
Input Power (Max.)	200mW
Durability	<0.20 dB Typical, 1000 matings
Operating Temperature	- 20 ~ +75℃
Storage Temperature	-40 ~ +85℃
