Standard Fiber Pigtails-KINGTON Optic Co.,Ltd

Description:

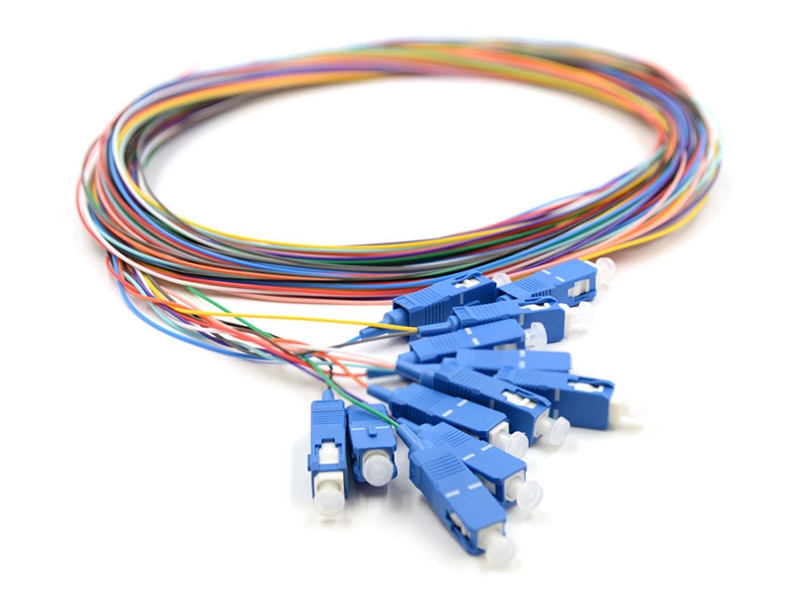

Fiber optic pigtails are cable terminated with connectors at only one side and the other side without connectors, so that the connector side can connect to equipment and the other side can be spliced with optical cable fibers. Fiber optic pigtails are usually used with fiber optic management equipment like ODF, splice closures and cabinets. All the passive products comply with Telcordia GR-326-Core, TIA/EIA and IEC.

Specifications：

Optical Performance	Single Mode		Multi Mode
Insertion Loss	≤0.20dB		≤0.30dB
Return Loss	≥50dB(UPC)		≥30dB
	≥60dB(APC)
Repeatability	≤0.10dB
Durability	≤0.2dB typical change,1000 matings
Core/Cladding size	9/125μm		50/125μm	62.5/125μm
Cable count	Simplex or Duplex
Jacket type	PVC or LSZH
Jacket Diameter	900μm, 2mm or 3mm
Operating Temperature	- 20 ~ +75℃
Storage Temperature	- 40 ~ +85℃

Endface Geometry
Parameter	2.5μm ferrule		1.25μm ferrule
	UPC	APC	UPC	APC
Radius of Curvature	10～25mm	5～12mm	7～25mm	5～12mm
Apex Offset	0～50μm	0～50μm	0～50μm	0～50μm
Fiber Height	-100～50nm	-100～100nm	-100～50nm	-100～100nm
Angle	--	7.7-8.3degree	--	7.7-8.3degree
