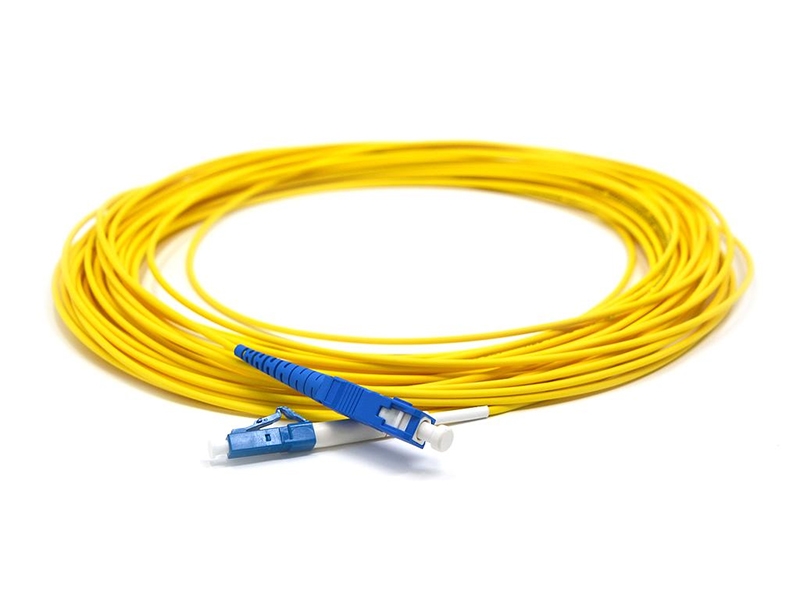

Standard Fiber Patch cord-KINGTON Optic Co.,Ltd

Description:
KINGTON provides an extensive line of high performance fiber optic passive products. Using up-to-date technology, advanced manufacturing equipments, and strick quality control & management ensures long life and excellent quality of our products, deliver high stability under a range of application conditions for todays stringent optical networks. All the passive products comply with Telcordia GR-326-Core, TIA/EIA and IEC.
High quality zirconia ceramic ferrule
Patch cord&pigtails selected ceramic ferrule, professional grinding technology, so that the end face of the optical fiber can be precisely connected.Optimum IL and RL ensure stable signal transmission, protecting your network safety.

Specifications：

Optical Performance	Single Mode		Multi Mode
Insertion Loss	≤0.20dB		≤0.30dB
Return Loss	≥50dB(UPC)		≥30dB
	≥60dB(APC)
Repeatability	≤0.10dB
Durability	≤0.2dB typical change,1000 matings
Core/Cladding size	9/125μm		50/125μm	62.5/125μm
Cable count	Simplex or Duplex
Jacket type	PVC or LSZH
Jacket Diameter	900μm, 2mm or 3mm
Operating Temperature	- 20 ~ +75℃
Storage Temperature	- 40 ~ +85℃

Endface Geometry
Parameter	2.5μm ferrule		1.25μm ferrule
	UPC	APC	UPC	APC
Radius of Curvature	10～25mm	5～12mm	7～25mm	5～12mm
Apex Offset	0～50μm	0～50μm	0～50μm	0～50μm
Fiber Height	-100～50nm	-100～100nm	-100～50nm	-100～100nm
Angle	--	7.7-8.3degree	--	7.7-8.3degree
