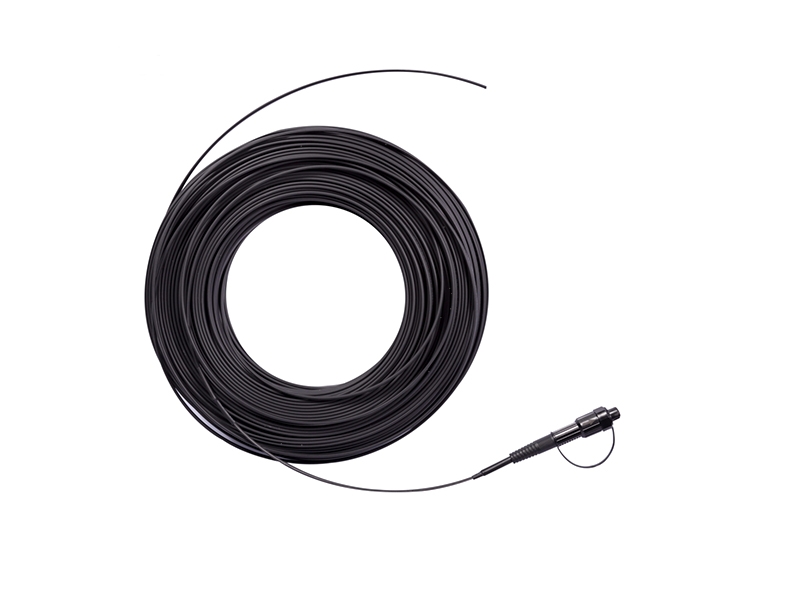

SC/APC Pre-terminated Flat Drop Cable Assemblies

Features:
• 100% optically tested to ensure quality performance assemblies.
• Provides moisture and dust protection for use in harsh industrial environments;
• Seal design: It is waterproof, dust-proof, anti-corrosion and so on;
• Easy connection to hardened adapters on terminals or closures;
• Reduce welding, connect directly to achieve interconnection;
• Spiral clamping mechanism ensures long-term reliable connection;
• Guide mechanism, can be blinded with one hand, simple and quick, connect and install;
• Reduce installation time by as much as 50 percent per network access point;

Download

Description:
SC/APC Patchcord Waterproof IPSC (Mini-SC) Patch Cords is a small high waterproof SC single core waterproof connector. Built-in SC connector core, to better reduce the size of the waterproof connector. Mini SC APC Patchcord is made of special plastic shell IP68 (which is resistant to high and low temperature, acid and alkali corrosion resistance, anti-UV) and auxiliary waterproof rubber pad. Cable Diameter can be 3.0/2.0*3.0/2.0*5.0/5.0/4.0*7.0mm many different sizes.

Specifications:

Cable Type	Outdoor Flat Drop Cable
Fiber Type	G657A1 / G657A2
Messenger Wire	1.0±0.02mm
Steel Wire	0.5±0.02mm
Cable Size，mm	(2.0±0.1)x(5.0±0.2)mm
Outer Jacket Material	LSZH
Connectors Connector	A: MINI SC
Insertion Loss	≤0.3dB
Return Loss	≥60dB
Cable Length	1~200M or Customized
Branch Length	Customized
Working Temperature	-20°C~+70°C
Storage Temperature	-20°C~+70°C
Tensile Load (N)	Tensile between junction and fiber cable≥100N
