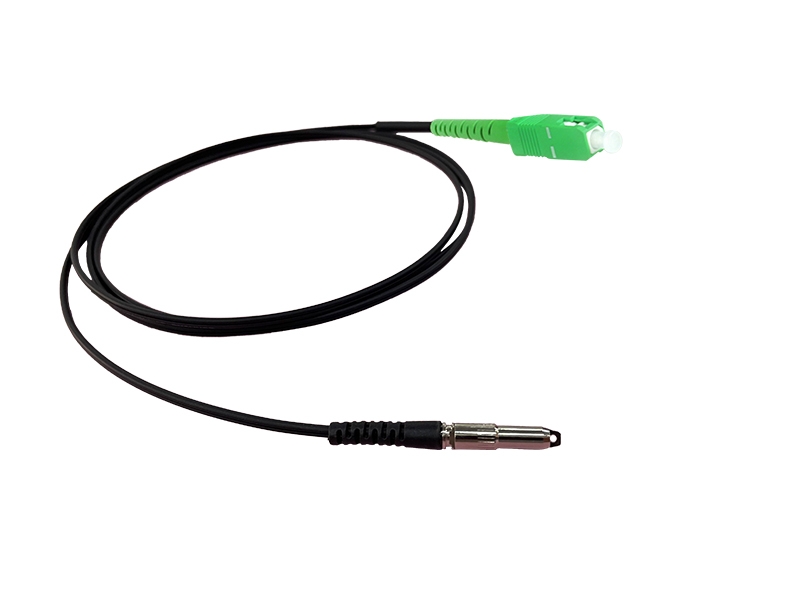

SC/APC Pushable Drop Cable Assembly-KINGTON Optic Co.,Ltd

Description:
KINGTON Pushable Fiber Cables are engineered to fit through a 3/8"" hole for quick and easy installment. This feature allows for a tool-less installation, as the SC outer housing snaps into place. Using this cable will also reduce the installation cost and time it takes to set up.
The pushable connector enables the pre-connectorized cable to be installed through microducts and small holes that are typical of most FTTX scenarios. This cable can be installed without using large conduits or drilling big holes through the customer's wall.

Available in a variety of configurations to support your specific needs.

Specifications：

Optical Performance	Single Mode
Insertion Loss	≤0.20dB
Return Loss	≥50dB(UPC)
	≥60dB(APC)
Repeatability	≤0.10dB
Durability	≤0.2dB typical change,1000 matings
Core/Cladding size	9/125μm
Cable count	Simplex
Jacket type	PVC or LSZH
Operating Temperature	- 20 ~ +75℃
Storage Temperature	- 40 ~ +85℃

Endface Geometry
Parameter	2.5μm ferrule		1.25μm ferrule
	UPC	APC	UPC	APC
Radius of Curvature	10～25mm	5～12mm	7～25mm	5～12mm
Apex Offset	0～50μm	0～50μm	0～50μm	0～50μm
Fiber Height	-100～50nm	-100～100nm	-100～50nm	-100～100nm
Angle	--	7.7-8.3degree	--	7.7-8.3degree
