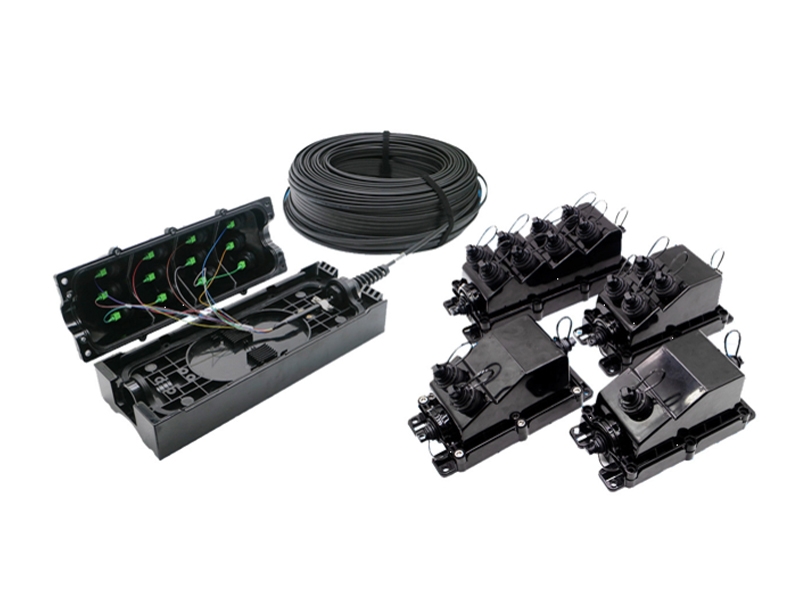

Multiport Service Terminal (MST) Box

Features:
• Angled outlet adapters for easy access to ports
• Available with PLC or splice sleeve for fiber divide.
• From 4to 12ports for single or multi fiber harsh connectors.
• Reduced installation and maintenance time
• IP68 rated for water and dust ingress protection
• Durable UV resistant construction
• Mounting hardware included for pole, aerial, or wall
• RoHS and REACH materials compliant

Download

Description:
Multiport Service Terminal Box is used for access points of the FTTx ODN network.The terminal fiber optic box is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing. All ports are equipped with hardened adapters. The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency. FastConnect Cable Outdoor is a new economic fiber distributed solution for outdoor use. Compare traditional products, MST box is easy to operate and has high compatibility. Reduces the total cost of operation (TCO) by 15–30%. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. MST box not only used in FTTH field, but also used in FTTA or other harsh environment.

Specifications:

Item	Parameters
Dimension L×W×H	8 Port 28211292, 4 Port 21011292
Cable type	Hybrid or non-hybrid
Round cable OD	5.0mm to 14mm
Flat cable dimension	4.5×8.9mm
Cable jacket material	LSZH, PE or TPU
Cable crush resistance	200N/cm long term
Tensile strength	1200N long term
UV resistance	ISO 4892-3
Number of PLC	1to 2pcs
Number of fusion protection sleeve	1to 24pcs
Protection Grade	IP68
Working Temperature	–40℃～+80℃
