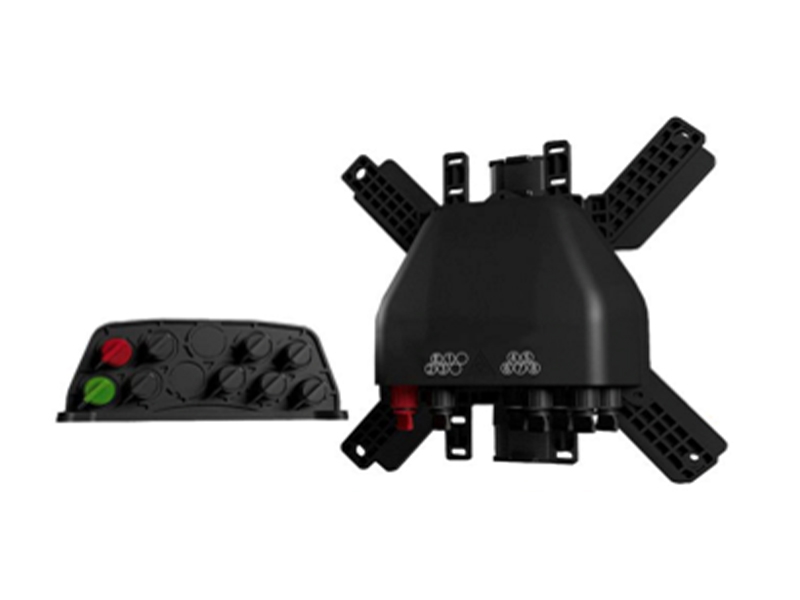

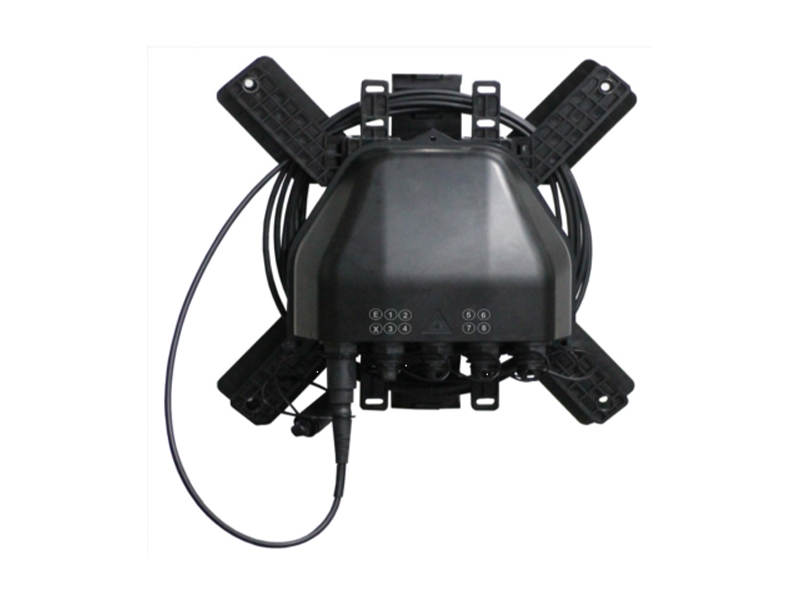

PRE-CONNECTORIZED 11 Ports Terminal Box

Features:
• Moisture proof, waterproof, dust-proof, anti-aging, protection level IP68;
• Clamping, splicing, fixation, storage and distribution of feeder cable and drop cable are integrated;
• High compatibility: can be assembled SuperTap(OptiTap compatible), Fast SC connector, ODC, PTLC, PTMPO or power adapter;
• From 2 to 11 ports for single or multifiber harsh connectors;
• Available with PLC or splice sleeve for fiber divide, the bottom cover is welded by ultrasonic welding, which is non-detachable;
• Wall-mounting, aerial installation or holding pole installation;
• Cost effective: save 40% operating time

Download

Description:

The equipment is used as an intermediate distribution point or a termination point for the feeder cable to connect with a drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box by customer’s requirement at the factory. This is a sealed unit and meanwhile it provides solid protection and management for the FTTx network building.

Specifications:

Model	Splitter		Insertion loss(dB)
	FBT	PLC
90/10	1x2,90/10	1x8	≤ 0,8/21,5
80/20	1x2,80/20	1x8	≤ 1,4/18,4
70/30	1x5,70/30		≤ 1,8/15,8
70/30	1x9,70/30		≤ 2,2/16,5
60/40	1x2,60/40	1x8	≤ 2,7/15,2
90/10	1x2,90/10	1x16	≤ 0,8/24.5
80/20	1x2,80/20	1x16	≤ 1,4/21.5
70/30	1x17,70/30		≤ 2,2/19.5
60/40	1x2,60/40	1x16	≤ 2,7/18.1
Standard	N/A	1x16	≤ 13,8
Standard	N/A	1x8	≤ 10,5
Standard	N/A	1x4	≤ 7,3
