PRE-CONNECTORIZED Hub Box Terminal Box-KINGTON Optic Co.,Ltd

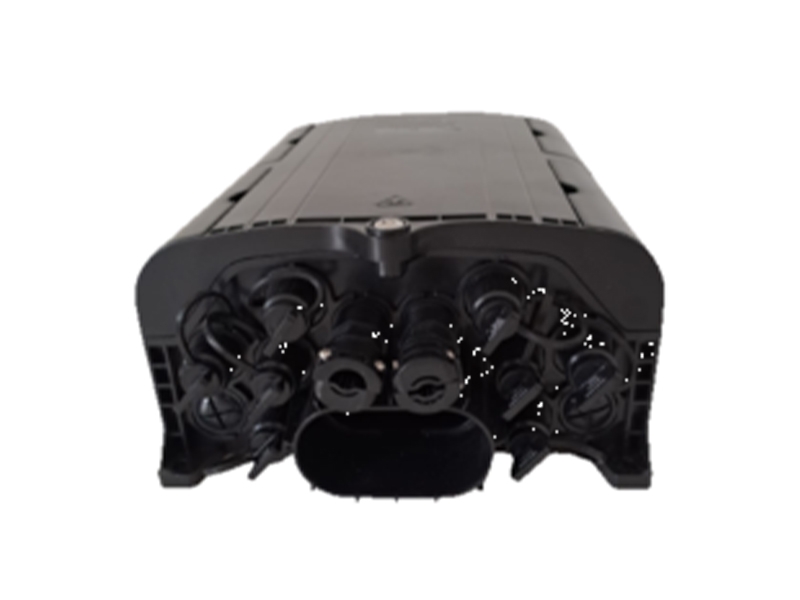

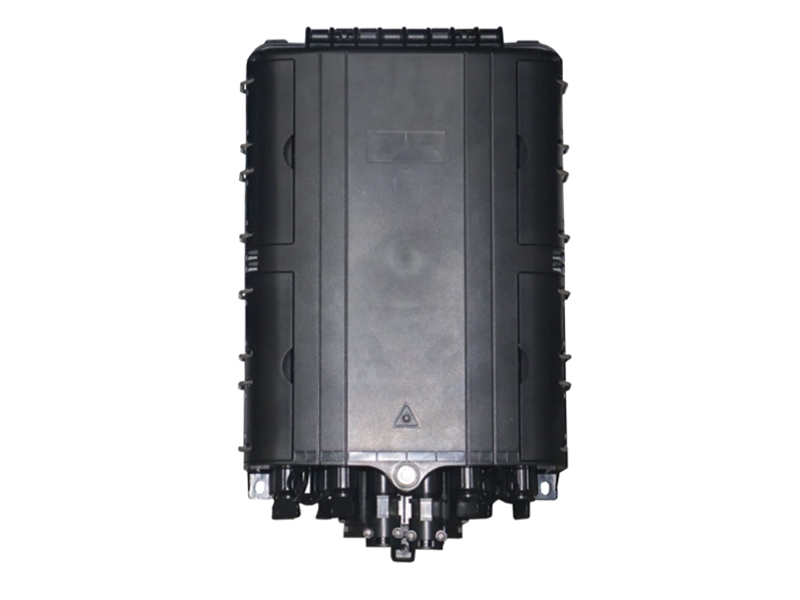

PRE-CONNECTORIZED Hub Box Terminal Box

Features:
• Small size and elegant appearance.
• Wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.
• Plug and play, FastConnect drop cable instead of splicing, be installed without opening the box.
• Faster cable inletting and sealing module make installation efficiently.
• Support dispatching fibers from same loose tube into different trays.
• Flexible splicing tray design.
• Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Download

Description:
Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network. It is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Specifications：

Product name	2 IN 2 OUT 10 Ports FTTx Precon Hub Box Terminal Box
Fiber Type	SM: G657A2
Color	Black or Customized
Material of Case	Alloy
Inside of Splice Tray	ABS
Cable Storage	Synthetic nylon fiber
Optical Cable Size	Pass-through cable: Ф8mm to Ф18 mm
Optical Cable Size	Auxiliary cable: Ф8mm to Ф16 mm
Splicing Capacity	48, 4 PCS trays
Termination Capacity	Max. 10 PCS Hardened Adapters
IP protection level	IP68
Installation mode	Pole, Wall, Aerial Cable Mounting
Net weight (unit: kg)	1.6kg
Gross weight (unit: kg)	2kg
