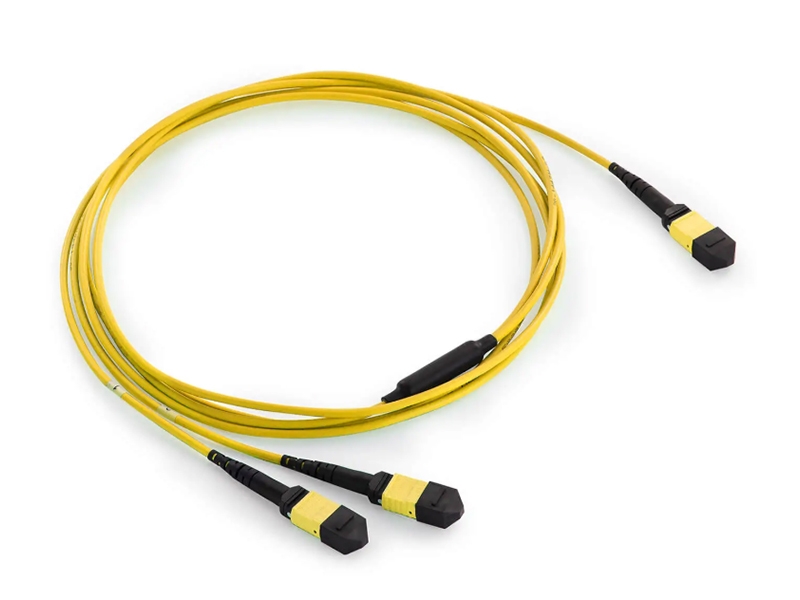

MTP/MPO Shuffle Cable

Features:
• Low insertion loss and high return loss
• Compatible with MTP®/MPO modules and adapter panels
• Optional pulling eyes protect connectors during cable installation
• PC, UPC, and APC endface options
• Optional pulling eyes protect connectors during cable installation
• RoHS compliant
• Flexible customization (fiber count, length, connector type, and mapping configuration)



Download
Description:
Kington MTP®/MPO Shuffle cables are pre-engineered assemblies designed with customized fiber mapping inside the cable to achieve specific channel reconfiguration requirements. Unlike conventional straight-through trunk cables, Shuffle cables internally re-route fiber positions across connectors, enabling predefined polarity schemes, lane re-mapping, or non-standard connectivity without additional patching. By embedding the routing logic within the cable structure, they simplify network architecture, reduce manual intervention, and improve deployment efficiency in high-density data center environments


Specifications:

Connector A

MTP/APC/Female

Connector B

MTP/APC/Female

Fiber Mode

OS2 9/125μm

Wavelength

1310/1550nm

Fiber Type

Corning SMF-28® Ultra

Min. Bend Radius

10mm

Fiber Count

8F

Cable Jacket

LSZH

Cable OD

3.0mm

Cable Structure

Mini Cable

Breakout Length

0.5m

Breakout Tube

3.0mm

Return Loss

≥60dB

Insertion Loss

Max. 0.35dB (Typical 0.25dB)

Attenuation@1310nm

≤0.4dB/km

Attenuation@1550nm

≤0.3dB/km

Storage Temperature

-40℃ ~ + 75℃

Operating Temperature

-10°C~+60°C

Installation Tensile Strength

66N

Cable Tensile Strength(Long/Short)

80/150N
