Features:
• Direct breakout from MTP®/MPO to multiple simplex connectors
• Fiber count available in 8~24
• Available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades,Option for LSZH, PVC or Hytrel loose tube
• Flexible breakout configurations and connector options
• Multimode and single-mode fiber options
• Factory terminated and tested

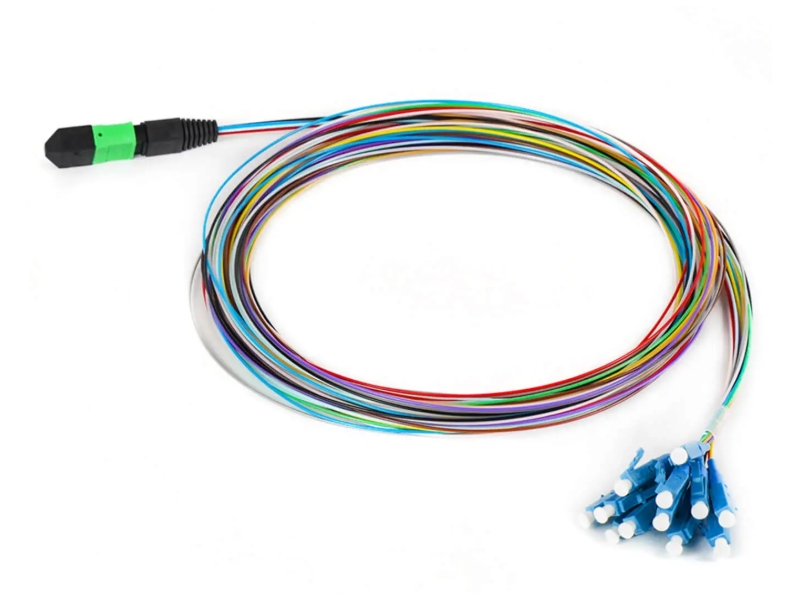

An MTP/MPO Hydra Cable (also known as a breakout or fan-out cable) is a high-performance fiber optic assembly specifically designed for internal routing within high-density plug-and-play cassette modules or direct device patching.It features a high-density, multi-fiber MTP/MPO connector on one end that splits (fans out) into multiple single-fiber or duplex conventional connectors (such as LC, SC, FC, or ST) on the other end, mimicking the structure of a hydra.
Specifications:
|
Connector A |
MTP/APC/Female |
Connector B |
LC/UPC (simplex) |
|
Fiber Mode |
OS2 9/125μm |
Wavelength |
1310/1550nm |
|
Fiber Type |
Corning SMF-28® Ultra |
Min. Bend Radius |
10mm |
|
Fiber Count |
12F |
Cable Jacket |
Hytrel |
|
Cable OD |
0.9mm |
Cable Structure |
simplex |
|
Return Loss |
≥60dB |
Insertion Loss |
Max. 0.35dB (Typical 0.25dB) |
|
Attenuation@1310nm |
≤0.4dB/km |
Attenuation@1550nm |
≤0.3dB/km |
|
Storage Temperature |
-40℃ ~ + 75℃ |
Operating Temperature |
-10°C~+60°C |
