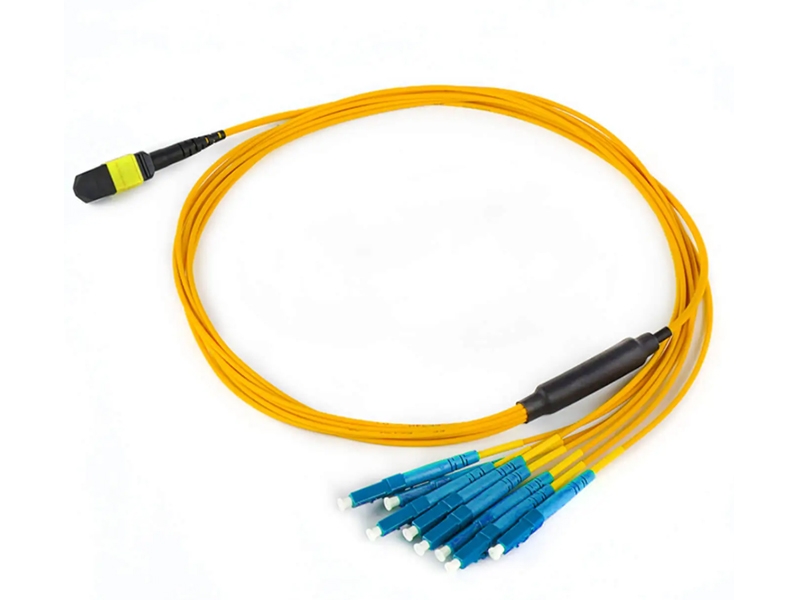

MTP/MPO Harness/Breakout cable-KINGTON Optic Co.,Ltd

Description:
Kington MTP®/MPO harnesses enable a smooth transition to higher data rates in data centers when used alongside our trunk cables. Primarily employed for patching within cabinets, MTP®/MPO harness cables provide a cost-effective alternative to time-consuming field terminations. They are specifically designed for high-density fiber patching in data centers, optimizing space utilization and minimizing cable management complexities.
The MTP®/MPO-8 configuration is tailored for high-density data center applications, supporting 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR, and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optical connections.

Specifications：

Connector A	MTP/APC/Male	Connector B	LC/UPC (duplex)
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Fiber Type 1	Corning SMF-28® Ultra	Fiber Count	8F
Polarity	Type A	Cable Jacket	LSZH
Cable OD	3.0mm	Cable Structure	Mini Cable
Breakout Length	0.5m	Breakout Tube	2.0mm/LSZH
MTP Return Loss	≥60dB	MTP Insertion Loss	Max. 0.35dB (Typical 0.25dB)
LC Return Loss	≥50dB	LC Insertion Loss	Max. 0.20dB (Typical 0.12dB)
Attenuation@1310nm	≤0.4dB/km	Attenuation@1550nm	≤0.3dB/km
Storage Temperature	-40℃ ~ + 75℃	Operating Temperature	-10°C~+60°C
Installation Tensile Strength	66N	Cable Tensile Strength(Long/Short)	60/100N
Connctor Durability	MTP：50 times；LC：500 times	Min. Bend Radius	10mm
