  • Quality System

    Quality System

    Company strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance;   In order to maintain product performance and stability, and to achieve the level of the industrial standard, we execute incoming quality control, in-process quality control, and outgoing quality as the core processes of our quality system.   1. IQC: Incomming Quality Control.   - We only choos..
  • Connector Surface Inspection

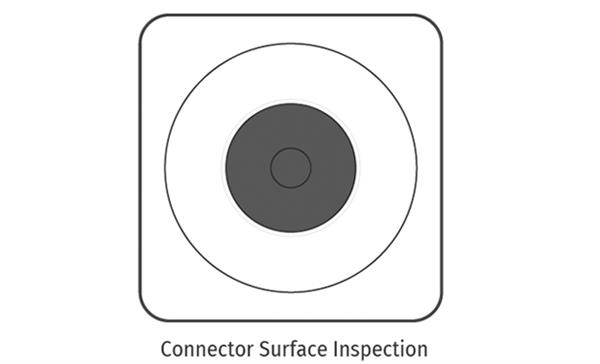

    Connector Surface Inspection

    In order to ensure all connector endfaces are devoid of scratches and free of contamination, video inspection becomes necessary. All KINGTON patch leads undergo visual inspection using a 400x magnification optical connector microscope to ensure all end face conditions meet the visual inspection criteria as set out in the relevant Australian/international test standards.
  • Geometric Inspection

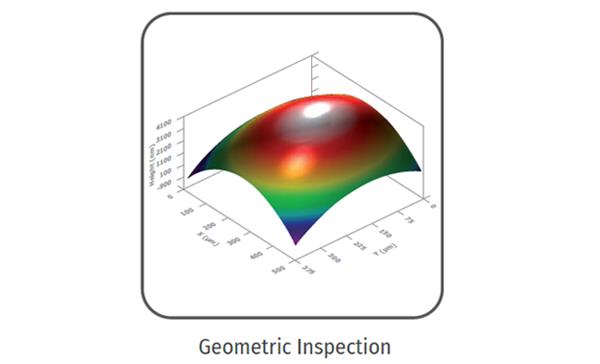

    Geometric Inspection

    In order to ensure proper physical contact between connectors while mated, ferrule and end face geometry must remain within specification. Maintaining correct connector geometry provides reliable, repeatable mating and helps avoid core and endface damage. DORC non contact optical interferometer is employed to ensure connector geometry requirements are met.
  • Insertion and Return Loss Testing

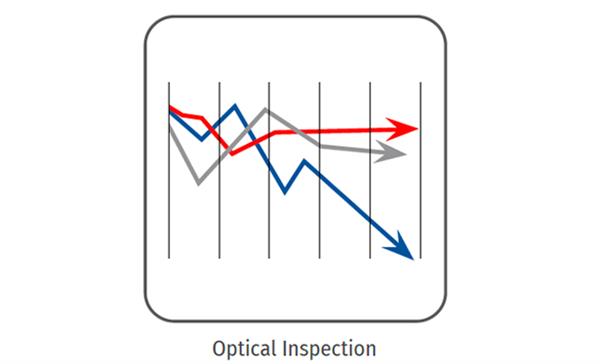

    Insertion and Return Loss Testing

    Optical inspection is vital for patchcord performance. Light source is launched to the patchcord (Device Under Test, DUT) for the actual Insertion Loss (IL) and Backreflection (BR) measurements. Backreflection is a parameter that measures how much light is back reflected at the connector. Each connector is tested individually for the IL and BR measurement. JDS RM series Backreflection meter is employed for Insertion Loss (IL) and Backreflection (BR) measurements. Quality optical performance tes..
  • Environment Testing

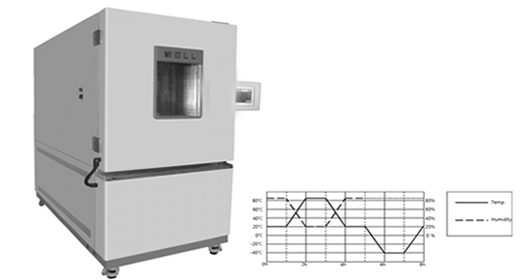

    Environment Testing

    Test Item : Temp./Humidity Cycle Test , +85℃ ~ -40℃ 1 Cycle : 8hrs , Test Time : 3Cycle ( 24hrs ) ※ IL value variation should be within ±0.3dB from during test and at the end of test from the IL value measured before testing (not including connector)
