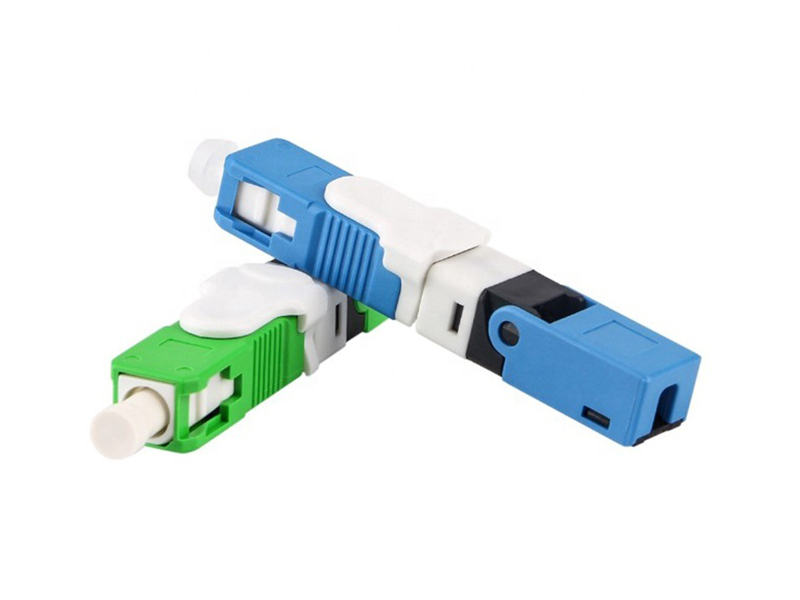

Fiber Fast Connector is a perfect solution for field working and FTTH connection. It is widely used for where need to quick connection, providing a quickly assembling and stable performance. When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing.fast conncetor is designed inside ferrule with fiber stuff and pre-polishing in the factory. It provides a perfect ferrule endface quality. This has great help to protect user’s equipment interface and reduce the connector loss.


• No epoxy and polishing required
• Quick and easy fiber termination
• High success rate of connections
• No special tools required.
• Fiber can be reseated.
• Precision mechanical alignment insures low insertion loss
• Uses proven, molded v-groove technologies
• RoHS compliant
• Comply with TIA/EIA and IEC

Applications





■ FTTH and FTTx
■ Active/Passive device
■ Telecommunication Networks
■ Analog/Digital Passive Optical Networks
■ Data Processing Networks
■ Premise Installations
■ LAN, WAN and Metro Networks
■ Other applications in fiber optic systems
■ Industrial, Medical & Military
■ CATV system
■ Active Device Termination
■ Fiber optic sensors


SC Fast Connector Specifications

Item

KT-FC-02

Length

52mm

Ferrules

SM/UPC     /    SM/APC

Inner Diameter of ferrules

125um

Insertion Loss

AVG≤0.3dB   MAX≤0.5dB

Return Loss

UPC≥45dB    /   APC≥50dB

Working Temperature

-20~+75℃

Storage Temperature

-40~+85℃

Mating Times

500Times

Cable Diameter

DROP CABLE  :  2*3.0mm /2.0*5.0mm /2.0*1.6mm
