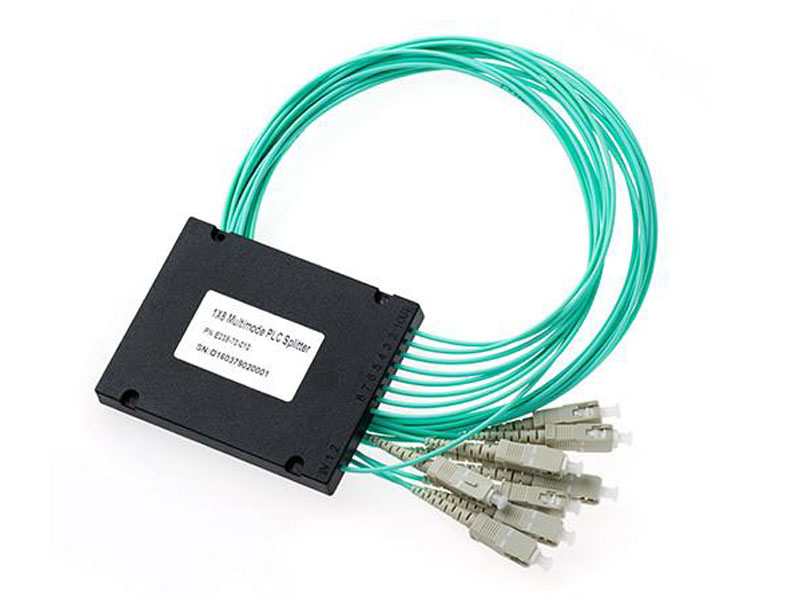

Multi-mode fibre optic splitter is a network component that distributes incoming light (one or two input fibers) in equal parts towards multiple output fibers (2-16). Splitters are available with 250 µm bare fibers, 900µm buffered fibers and 2.0 mm cords. Input and output cords and fibers can have various lengths and can be terminated by optical connectors. KINGTON fibre optic splitters can be integrated inside several products and/or applications in combination with keen fibre or cable management systems.
All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network deployment.
Among the many miniature parts which makes up a passive optical PLC splitter, there are three main components which are the fiber array for the input and output, and the chip. The design and assembly of these three component is the key to produce a high quality PLC splitter.
Connector type and color can be customized
■ Wide Operating wavelength From 650-1350nm
■ Low excess loss & High performance
■ Good uniformity & Low PDL
■ Small package size
■ Various connector type & Package Size available

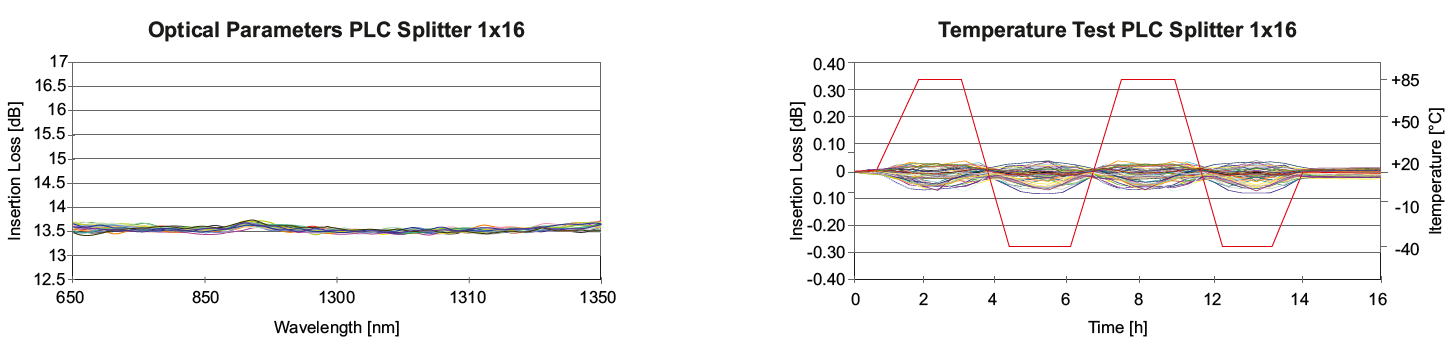

Our PLC splitter module has excellent performance parameters
■ A temperature chamber - allows to make the programmable tests from
- 4 0 t o 8 5 ° C however other tests are also available
Applications
■ FTTH and FTTx
■ Test Equipment
■ Telecommunication Networks
■ Analog/Digital Passive Optical Networks
|
■ Data Processing Networks
■ Premise Installations
■ LAN, WAN and Metro Networks
■ Other applications in fiber optic systems
|
■ Industrial, Medical & Military
■ CATV system
■ Active Device Termination
■ Fiber optic sensors
|
1×N PLC Splitter
|
Parameters
|
1×2
|
1×3
|
1×4
|
1×6
|
1×8
|
1×16
|
|
Operating Wavelength(nm)
|
650-1350，or On Request
|
|
Fiber Type
|
50/125 or 62.5/125um Multi-Mode Fiber
|
|
Insertion Loss(dB)
|
3.7
|
5.8
|
7.0
|
9.4
|
10.5
|
14.0
|
|
Uniformity(dB)
|
≤0.6
|
≤0.8
|
≤1.0
|
≤1.2
|
≤1.5
|
≤1.8
|
|
Return Loss(dB)
|
≥40 or On Request
|
|
PDL(dB)
|
≤0.1
|
≤0.1
|
≤0.1
|
≤0.1
|
≤0.1
|
≤0.15
|
|
Directivity (dB)
|
≥50
|
|
Operating Temperature (℃)
|
-25～70
|
|
Storage Temperature (℃)
|
-25～70
|
|
Mini Module Dimension (LxWxH)
|
4×7×50
|
4×7×50
|
4×7×50
|
4×7×60
|
4×7×55
|
4×12×60
|
|
ABS Box Dimension (LxWxH)
|
100x80x10
|
100x80x10
|
100x80x10
|
120x80x18
|
120x80x18
|
140x115x18
|
|
Bare Fiber Dimension (LxWxH)
|
4×4×40
|
4×4×40
|
4×4×40
|
4×7×55
|
4×7×50
|
4×12×60
|
|
Note: Add an additional 0.3dB loss per connector.
|
2×N PLC Splitter
|
Parameters
|
2×2
|
2×4
|
2×8
|
3×8
|
|
|
Operating Wavelength(nm)
|
650-1350，or On Request
|
|
Fiber Type
|
50/125 or 62.5/125um Multi-Mode Fiber
|
|
Insertion Loss(dB)
|
4.0
|
7.2
|
11.0
|
12.0
|
|
|
Uniformity(dB)
|
≤0.7
|
≤1.1
|
≤2.0
|
≤2.6
|
|
|
Return Loss(dB)
|
≥40 or On Request
|
|
PDL(dB)
|
≤0.1
|
≤0.1
|
≤0.2
|
≤0.3
|
|
|
Directivity (dB)
|
≥50
|
|
Operating Temperature (℃)
|
-25～70
|
|
Storage Temperature (℃)
|
-25～70
|
|
Mini Module Dimension (LxWxH)
|
4×7×60
|
4×7×60
|
4×7×60
|
4×7×60
|
|
|
ABS Box Dimension (LxWxH)
|
100x80x10
|
100x80x10
|
100x80x10
|
120x80x18
|
|
|
Bare Fiber Dimension (LxWxH)
|
4×7×55
|
4×7×60
|
4×7×60
|
4×7×55
|
|
|
Note: Add an additional 0.3dB loss per connector.
|
