Fibre optic splitter is a network component that distributes incoming light (one or two input fibers) in equal parts towards multiple output fibers (2-64). Splitters are available with 250 µm bare fibers, 900µm buffered fibers and 2.0 mm cords. Input and output cords and fibers can have various lengths and can be terminated by optical connectors. KINGTON fibre optic splitters can be integrated inside several products and/or applications in combination with keen fibre or cable management systems.
All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network deployment.
Among the many miniature parts which makes up a passive optical PLC splitter, there are three main components which are the fiber array for the input and output, and the chip. The design and assembly of these three component is the key to produce a high quality PLC splitter.
Connector type and color can be customized
■ Wide Operating wavelength From 1260-1650nm±40nm
■ Low excess loss & High performance
■ Good uniformity & Low PDL
■ Small package size
■ Various connector type & Package Size available

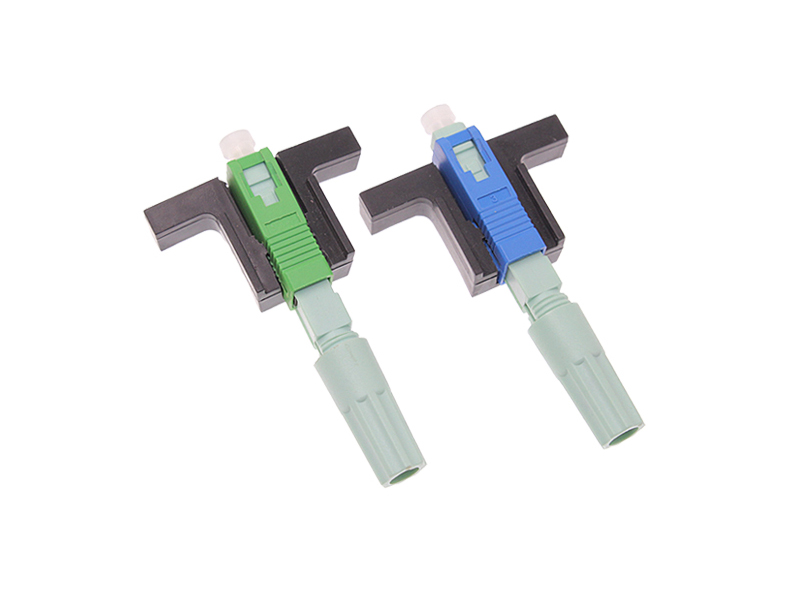

■ Standard connector type SC/APC-80, SC/UPC,
■ Must have a cover to prevent dirt.
■ Specifications for connectors
■ Insertion loss: ≤ 0.30dB.
■ Reflection loss: 60dB for SC/APC-80 , 50dB for SC/UPC
■ Loss stability: ≤ 0.1dB after 500 connection cycles.
■ Working temperature: from -100C to +650C.
■ Humidity ≤95%RH.
■ Mechanical, environmental and connection requirements according to ITU-T L.36/2008
■ Vibration resistance - Vibration (IEC 61300-2-1): compliant with ITU-T L.36/2008 (clause 9.2.1)
■ Strength of the coupling mechanism (IEC 61300-2-6): comply with ITU-T L.36/2008 (section 9.2.2)
■ Fiber/cable retention (IEC 61300-2-4): compliant with ITU-T L.36/2008 (section 9.2.3.1).
■ Change of temperature (IEC 61300-2-22): comply with ITU-T L.36/2008 (clause 9.2.6.4)
■ Environmental tests (according to ITU-T L51/2012 Passive node elements for fiber optic networks – General principles and definitions for characterization and performance evaluation, Table A.1/L.51 – Summary of typical parameters for the basic environmental classes and ITU-T L.52/2003 Deployment of Passive Optical Networks (PON), Table I.3/L.52 – Environmental and mechanical performance):
■ Vibration resistance test according to IEC 61300-2-1.
■ Test for resistance to temperature changes (Temperature cycling) according to IEC 61300-2-22, temperature range from -10oC to +65oC.
■ Immersion in water (water immersion): temperature 35°C ÷ 43°C; pH 5.5 for 5 days. Loss change <0.2dB
■ Salt spray: spray 5% NaCl water, then maintain the temperature at 43oC ÷ 65oC for 5 days. Loss change <0.2dB.
■ Working environment and conditions: non-wavelength selective branching optocoupler - working in normal environment according to IEC 61753/ITU-T G.671 (non-wavelength selective branching devices for Category U - Uncontrolled environment) (or equivalent).
Our PLC splitter module has excellent performance parameters
■ A temperature chamber - allows to make the programmable tests from
- 4 0 t o 8 5 ° C however other tests are also available
