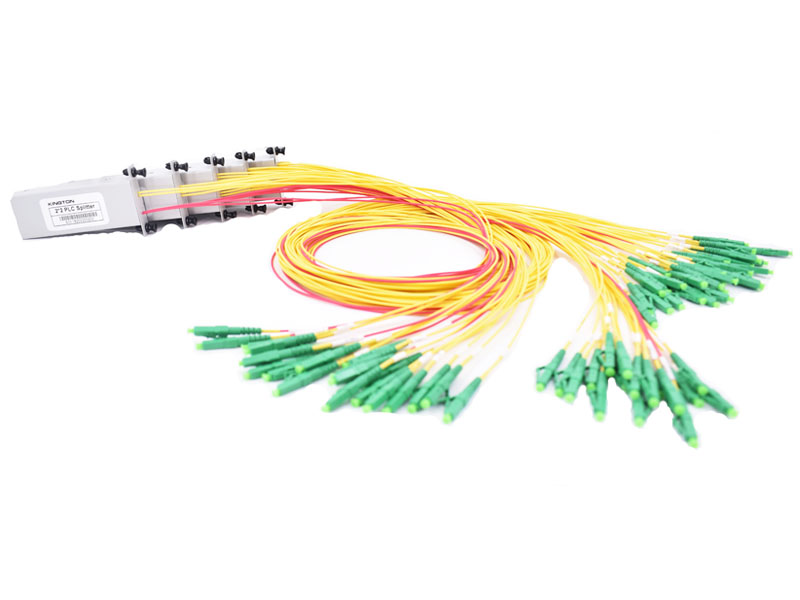

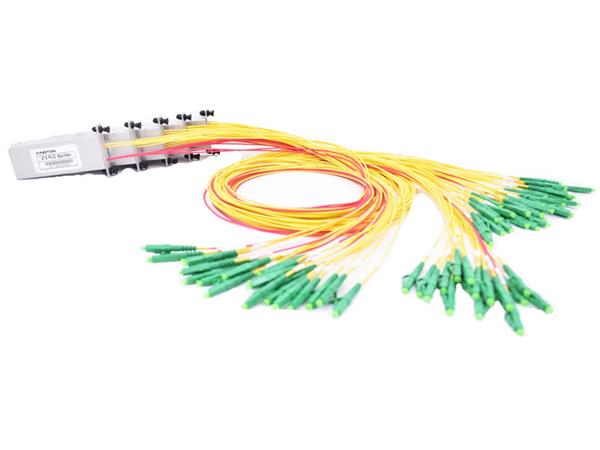

KINGTON s LGX splitters are connectorized PLC splitters housed in small metallic boxes and are able to mount multiple pieces on a 19” frames of 1U / 2U high unit,also can installed in the FDT and FAT to implement the splitting function Such splitter boxes can have integrated IN/OUT with pigtail,can easy connect to the adapter of ODF plate.It is well to save the installation time and cost in the field.
All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network deployment.
Among the many miniature parts which makes up a passive optical PLC splitter, there are three main components which are the fiber array for the input and output, and the chip. The design and assembly of these three component is the key to produce a high quality PLC splitter.

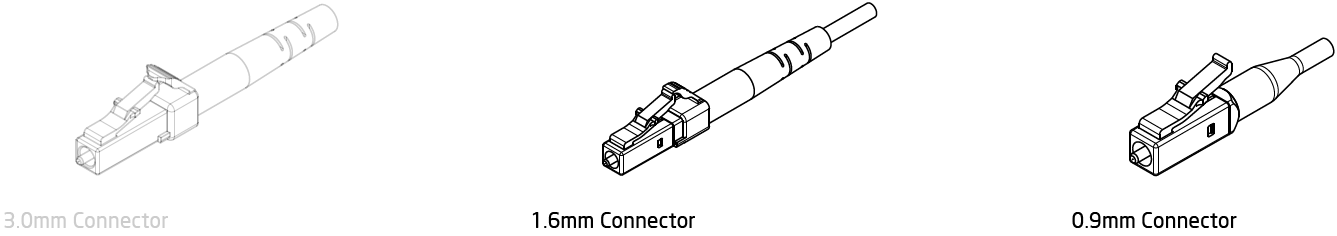

Connector type and color can be customized
■ Wide Operating wavelength From 1260-1650nm
■ Low excess loss & High performance
■ Good uniformity & Low PDL
■ Small package size
■ Various connector type & Package Size available
Our PLC splitter module has excellent performance parameters
■ A temperature chamber - allows to make the programmable tests from
- 4 0 t o 8 5 ° C however other tests are also available
Applications
■ FTTH and FTTx
■ Test Equipment
■ Telecommunication Networks
■ Analog/Digital Passive Optical Networks
|
■ Data Processing Networks
■ Premise Installations
■ LAN, WAN and Metro Networks
■ Other applications in fiber optic systems
|
■ Industrial, Medical & Military
■ CATV system
■ Active Device Termination
■ Fiber optic sensors
|
1×N PLC Splitter
|
Parameters
|
1x2 Port
|
1x4 Port
|
1x8 Port
|
1x16 Port
|
1x32 Port
|
1x64 Port
|
|
Operating Wavelength(nm)
|
1260～1650
|
|
Fiber Type
|
G652D/G657A1/G657A2
|
|
Insertion Loss(dB)
|
4.1
|
7.4
|
10.8
|
14.3
|
17.3
|
21
|
|
Uniformity(dB)
|
1
|
1.5
|
1.5
|
2
|
2
|
2.5
|
|
Return Loss(dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|
PDL(dB)
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.5
|
|
Directivity (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
Temperature Stability(-40～85 ℃)(dB)
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Operating Temperature (℃)
|
-25～70
|
|
Storage Temperature (℃)
|
-25～70
|
|
LGX Dimension (LxWxH)
|
110x40x18
|
|
Note: Add an additional 0.3dB loss per connector.
|
2×N PLC Splitter
|
Parameters
|
2x2 Port
|
2x4 Port
|
2x8 Port
|
2x16 Port
|
2x32 Port
|
2x64 Port
|
|
Operating Wavelength(nm)
|
1260～1650
|
|
Fiber Type
|
G652D/G657A1/G657A2
|
|
Insertion Loss(dB)
|
3.8
|
7.1
|
10.2
|
13.5
|
16.8
|
20.5
|
|
Uniformity(dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2
|
|
Return Loss(dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|
PDL(dB)
|
0.2
|
0.2
|
0.2
|
0.3
|
0.3
|
0.35
|
|
Directivity (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
Temperature Stability(-40～85 ℃)(dB)
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Operating Temperature (℃)
|
-25～70
|
|
Storage Temperature (℃)
|
-25～70
|
|
LGX Dimension (LxWxH)
|
110x40x18
|
|
Note: Add an additional 0.3dB loss per connector.
|
PLC Splitter
