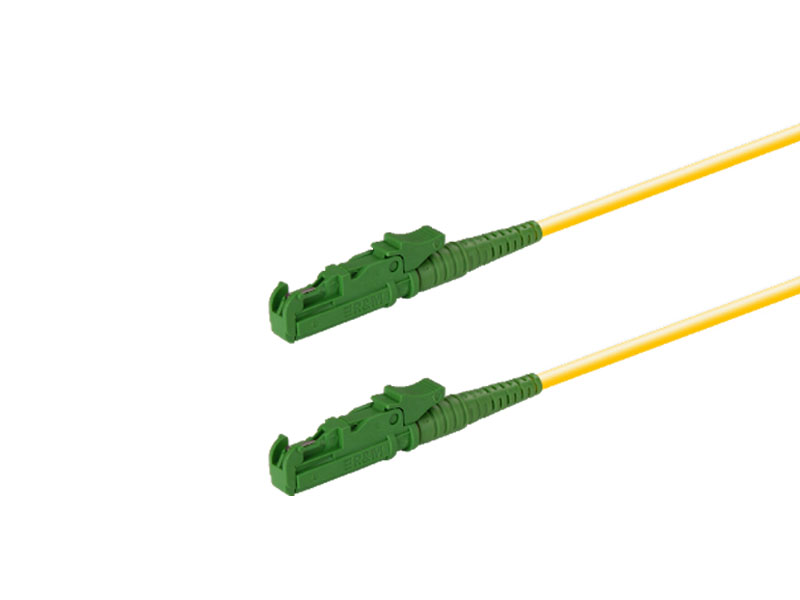

KINGTON provides an extensive line of high performance fiber optic passive products. Using up-to-date technology, advanced manufacturing equipments, and strick quality control & management ensures long life and excellent quality of our products, deliver high stability under a range of application conditions for todays stringent optical networks. All the passive products comply with Telcordia GR-326-Core, TIA/EIA and IEC.


High quality, 100% Tested

Comprehensive performance testing makes sure the cable work more secure and data transmission more reliable and stable in your network.

Digital end-face detector   No-mandrel IL & RL tester   Connector 3D tested

        Digital end-face detector                      No-mandrel IL & RL tester                      Connector 3D tested


Sort of Optical Fibers

Fiber specifications list the core and cladding diameters as a ratio.  Multimode fiber is commonly 62.5/125 or 50/125 micron, single mode fiber is commonly 9/125 micron.

Sort of the Constructions of Optical Fiber Cords-1


Sort of the Constructions of Optical Fiber Cords


Sort of the Constructions of Optical Fiber Cords-2




• 100% optically tested(Insertion loss)
• Perfect random mating performance
• Customer length
• Various connector type available
• Singlemode (OS2) and multimode (OM1, OM2, OM3, OM4, OM5) are available
• Environmental stable


High quality zirconia ceramic ferrule

Patch cord&pigtails selected ceramic ferrule, professional grinding technology, so that the end face of the optical fiber can be precisely connected.Optimum IL and RL ensure stable signal transmission, protecting your network safety.

High quality zirconia ceramic ferrule



Applications





■ FTTH and FTTx
■ Active/Passive device
■ Telecommunication Networks
■ Analog/Digital Passive Optical Networks
■ Data Processing Networks
■ Premise Installations
■ LAN, WAN and Metro Networks
■ Other applications in fiber optic systems
■ Industrial, Medical & Military
■ CATV system
■ Active Device Termination
■ Fiber optic sensors



Connector Specifications

Optical Performance Single Mode Multi Mode
Insertion Loss ≤0.20dB ≤0.30dB
Return Loss ≥50dB(UPC) ≥30dB
≥60dB(APC)
Repeatability ≤0.10dB
Durability ≤0.2dB typical change,1000 matings
Core/Cladding size 9/125μm 50/125μm 62.5/125μm
Cable count Simplex or Duplex
Jacket type PVC or LSZH
Jacket Diameter 900μm, 2mm or 3mm
Operating Temperature - 20 ~ +75
Storage Temperature - 40 ~ +85
Endface Geometry
Parameter 2.5μm ferrule
1.25μm ferrule
UPC APC UPC APC
Radius of Curvature 1025mm 512mm 725mm 512mm
Apex Offset 050μm 050μm 050μm 050μm
Fiber Height -10050nm -100100nm -10050nm -100100nm
Angle -- 7.7-8.3degree -- 7.7-8.3degree
